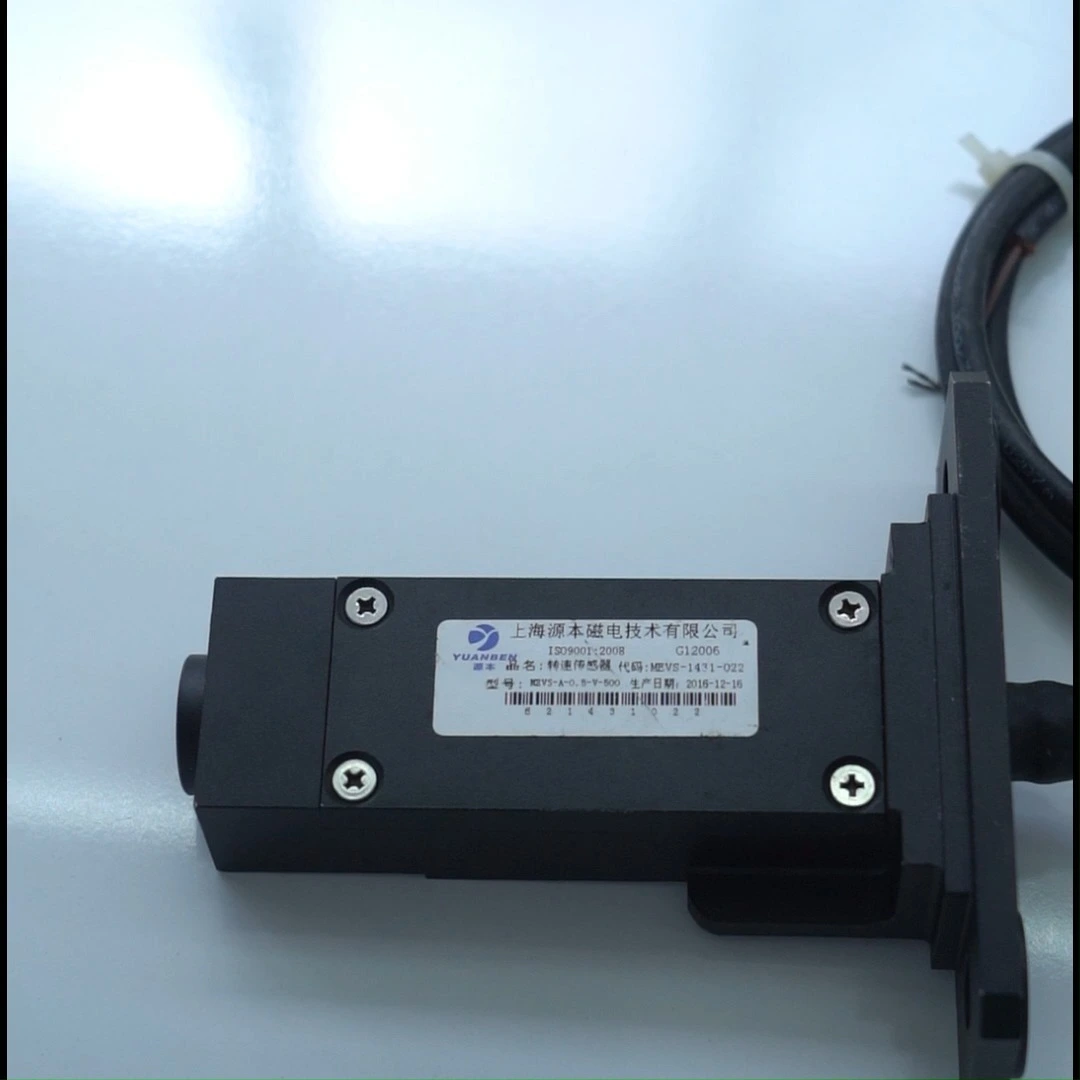

Passive speed encoder for high-speed rail locomotives

I. Overview
The speed encoder for high-speed railway locomotives developed and produced by Shanghai Yuanben Magnetoelectric Technology Co., Ltd. has performance indicators that reach those of similar international products and can replace the Japanese Mokawa speed sensor TS5840N series and TS5841N series speed sensors (also known as speed encoders).
It adopts the principle of magnetic induction and is formed by CNC one-piece processing into a sturdy alloy shell. It is anti-interference, anti-surge, anti-vibration and anti-shock, with superior performance. It can withstand sudden changes in high and low temperatures, is dust-proof, water-proof and oil-proof, with a protection level of IP67. It is equipped with a self-repairing speed signal function, ensuring stable, safe and reliable performance.
The product can be applied to the CRH2 high-speed railway vehicles produced by CSR, the CRH3 high-speed railway vehicles produced by CNR, as well as various types of heavy-duty mainline locomotives and metro vehicles produced by CSR and CNR.
According to customer requirements, we can design and customize various shape structures, electrical parameters, and multiple cable connector specifications to choose from. And provide a complete solution.

Ii. Product Features and Applications
Features:
No power supply required
Two-phase pulse output
The minimum detection speed is 30 rpm
Protection grade: IP67
Resistance to high and low temperatures: -40 to 120℃
Long service life: over 120,000 hours
Resistant to vibration, shock and corrosion

Application:
The application of medium and large-sized motor power equipment in high-speed rail vehicles, EMU vehicles, mainline locomotives, metro vehicles, light rail vehicles, monorail vehicles, electric shovels and mining equipment, as well as in the field of medium and large-sized three-phase asynchronous motors.
