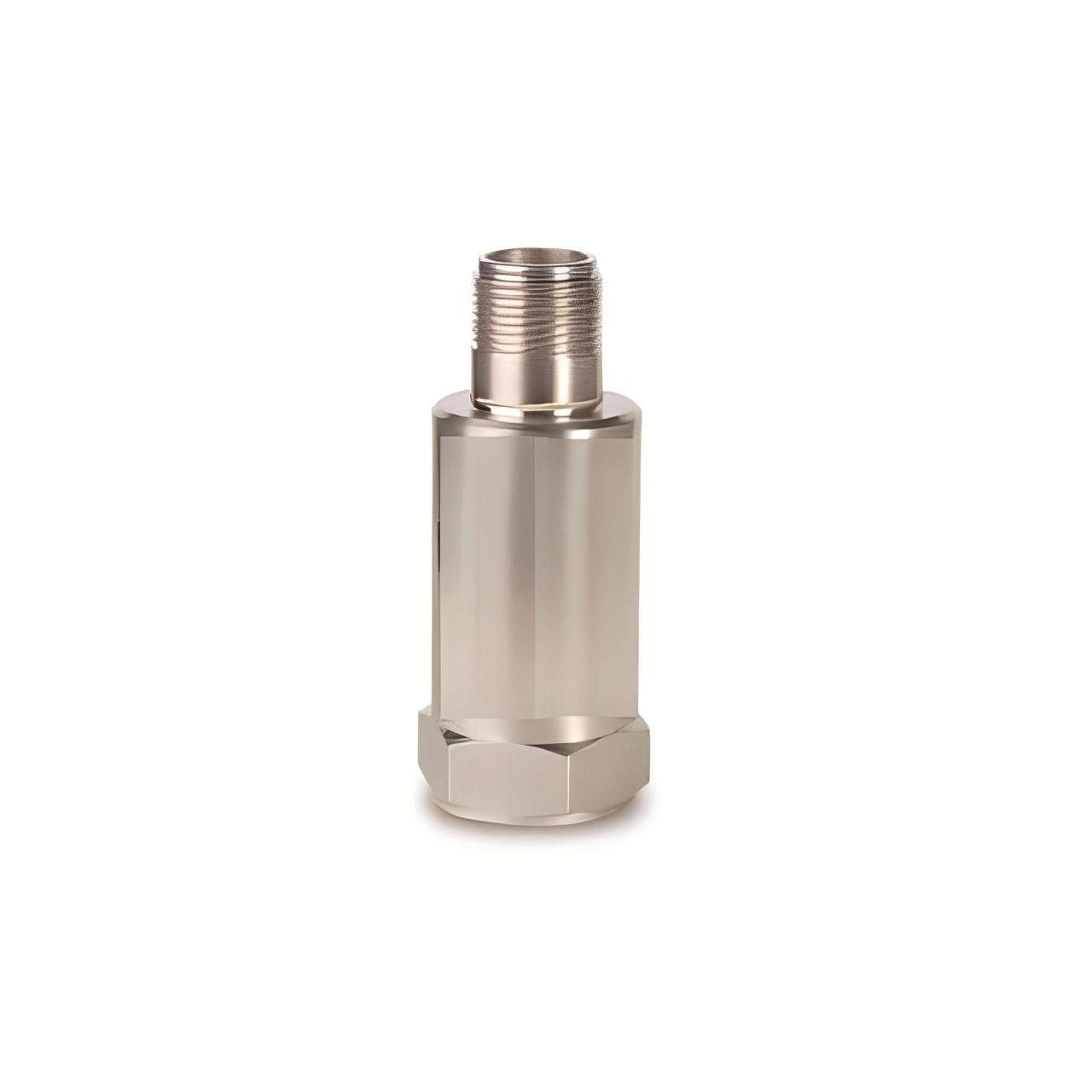

Industrial speed sensor-Magnetoelectric vibration sensor-VPS-V1003
The external structure and installation method of the VPS-V1003 magnetoelectric vibration sensor are suitable for thinner bearing covers. There is no need to process deeper installation holes. The sensor can be fixed with three M6 bolts, avoiding unnecessary damage to the machine caused by installing the sensor. All vibration sensors are equipped with 1.5-meter armored cables and FEP sheaths on the surface, which can be used in harsher environments without further protection.
Technical Parameters
|
Model |
VPS-V1003 |
VPS-V1003 |
VPS-V1003 |
|
Sensitivity |
50mV/mm/s±5% |
|
|
|
Amplitude limit |
≤2000μm (peak-to-peak) |
|
|
|
Frequency response |
(10-1000) Hz |
|
|
|
Maximum acceleration |
10g |
|
|
|
Measurement direction |
Vertical or horizontal (Universal Type) |
|
|
|
Installation method |
Three M6 internal hexagon screws are evenly distributed and fixed on the circular Angle of Φ43. |
|
|
|
Environmental conditions |
Dust-proof and moisture-proof |
|
|
|
Operating temperature |
(-30 to 120) ℃ |
|
|
|
Relative humidity |
≤ 95% (non-condensing) |
|
|
|
Protection grade |
IP65. |
|
|
Note: Sensitivity test conditions: (Measured at a temperature of 20℃±5℃, 80Hz, and a speed of 10mm/s
