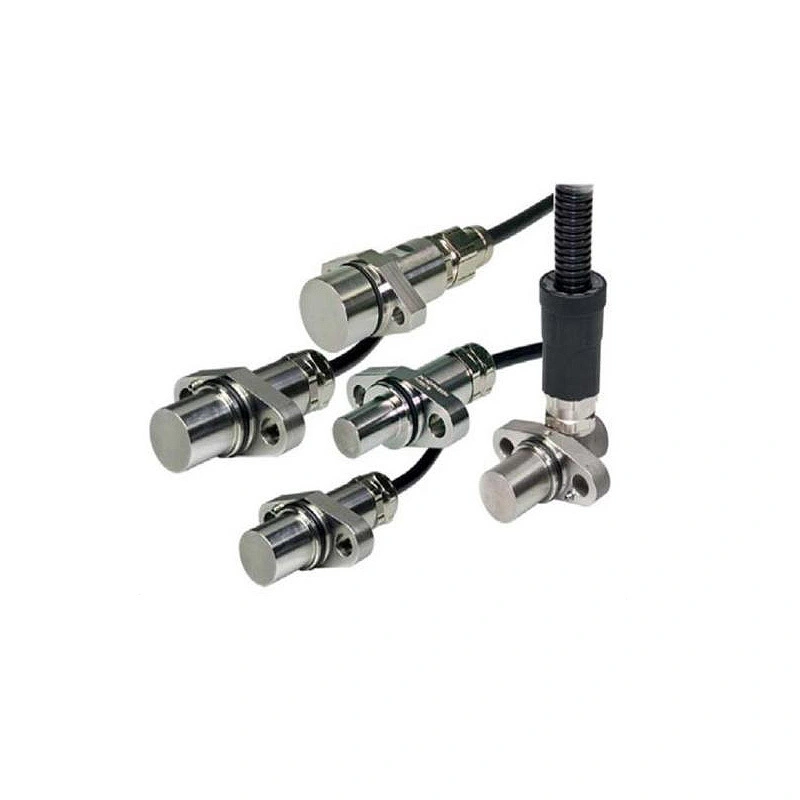

Speed sensor supplier-Dual Channel Speed Sensor-VS-4133-055 Series
Applied verified speed sensor, magnetic scanning function with ferromagnetic measurement scale to detect direction by evaluating two channels with 90° phase displacement or directional signal, robust, compact housing suitable for harsh applications with limited space.
Straight flange-mounted cable manufactured with cable protection and connectors to meet customer requirements
ll.Features
1 to 2 channels can also be used as an output signal for an electrical isolation system
Safely capture crawling motion without losing pulses, fast rotational motion
lll. Applications
Rotational speed acquisition for traction monitoring
Speed acquisition for train automatic protection
IV. Technical parameters
|
Sensor types |
VS-4133-055 Series |
||||
|
Product Number |
VS-4133-055A |
VS-4133-055B |
VS-4133-055C |
||
|
General data |
|||||
|
Operating voltage |
10-30V DC or 10-20V DC |
||||
|
Measurement techniques |
Magnetism |
||||
|
Output signal |
Square wave signal (anti-short circuit) |
||||
|
Target wheel material |
Ferromagnetic material |
||||
|
Sensor system |
1-2 |
||||
|
Target wheel module |
1-3.5 |
||||
|
Level of protection |
IP 68 Protection Class |
||||
|
Shell material |
Stainless steel |
||||
|
Cable |
Halogen-free and selective process |
||||
|
You can select a screen connection |
• |
|
|
||
|
Flange use divider |
• |
|
|
||
|
Minimum phase shift |
• |
|
|
||
|
Test against EN 50155 |
• |
|
|
||
|
Special approval |
CE Certification |
||||
|
Possible signal output |
|||||
|
Voltage output (HTL) |
• |
|
|
||
|
Current output |
Select 10-20 mA |
||||
|
Static voltage output |
7V |
|
|
||
|
Reversal signal |
• |
|
|
||
|
Direction detection |
Phase shift 90 ° |
||||
|
Electrical isolation of channel |
|
|
Yes |
||
|
Integrated interpolation |
• |
|
|||
