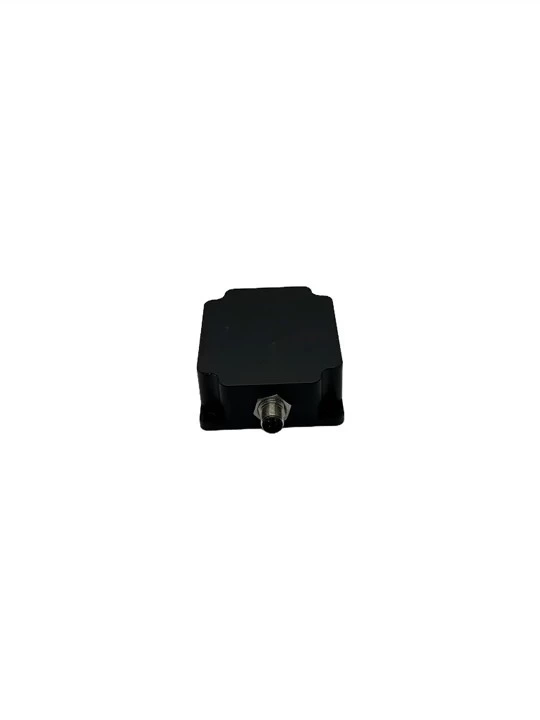

Motor angle sensor-IADS-02X40R biaxial tilt sensor (square metal case)-J1939 1
Motor angle sensor-IADS-02X40R biaxial tilt sensor (square metal case)-J1939 2
Motor angle sensor-IADS-02X40R biaxial tilt sensor (square metal case)-J1939 3
Motor angle sensor-IADS-02X40R biaxial tilt sensor (square metal case)-J1939 4
Motor angle sensor-IADS-02X40R biaxial tilt sensor (square metal case)-J1939 1
Motor angle sensor-IADS-02X40R biaxial tilt sensor (square metal case)-J1939 2
Motor angle sensor-IADS-02X40R biaxial tilt sensor (square metal case)-J1939 3
Motor angle sensor-IADS-02X40R biaxial tilt sensor (square metal case)-J1939 4

Motor angle sensor-IADS-02X40R biaxial tilt sensor (square metal case)-J1939

    oops...!

    no product data.

    Go to homepage

    Description

    Shanghai Yuanben Magnetoelectric Technology Co., Ltd. R&D and production of a high-precision biaxial tilt sensor, the largest measurement range of biaxial ± 90 °, with CANopen (J1939) communication protocol interface output.



    Characteristics

    Stable communication and high cost performance;

    All industrial components, reliable;

    Protection Class IP67;

    DC wide voltage supply;

     Motor angle sensor-IADS-02X40R biaxial tilt sensor (square metal case)-J1939 5

    Application

    High altitude platform safety monitoring;

    Angle recorder;

    Security control;

    Cement pump truck;

     Motor angle sensor-IADS-02X40R biaxial tilt sensor (square metal case)-J1939 6

    Technical parameters



    Project

    Test condition

    Minimum value

    Canonical value

    Maximum value

    Unit

    Working parameter

    Supply voltage

    Direct current

    8

    12

    30

    V

    Static operating current

    VCC = 12V (no load)

    15

    20

    25

    mA

    Operating temperature



    -40



    +85

    Performance parameters

    Scope of Test

    Biaxial axis



    ±10、±30、±80、±90



    Degree

    (1point discrimination

    Measurement range ≤ ± 90



    0.010.050.1



    Degree

    (2Accuracy

    Range

    ± 10

    Resolution: 0.01



    +0.05

    ±0.1

    Degree

    Resolution: 0.1

    ±0.2

    ±0.3

    ± 10 <

    Range

    ± 30

    Resolution: 0.01



    ±0.1

    0.2

    Degree

    Resolution: 0.1

    +0.3

    ±0.4

    ± 30

    Range

    ± 60

    Resolution: 0.01



    +0.15

    ±0.3

    Degree

    Resolution: 0.1

    ±0.4

    ±0.5

    ± 60

    Range

    ± 80

    Resolution: 0.01



    ±0.4

    ±0.8

    Degree

    Resolution: 0.1

    ±0.8

    ±1

    ± 80 < range ≤ ± 90



    ±5

    ±10

    Degree



    Repeatability

    Range

    ± 10

    Resolution: 0.01



    ±0.04



    Degree

    Resolution: 0.05

    ±0.1

    Resolution: 0.1

    ±0.2

    ± 10 <

    Range

    ± 30

    Resolution: 0.01



    0.06



    Degree

    Resolution: 0.1

    ±0.25



    ± 30

    Range

    ± 60

    Resolution: 0.01



    ±0.1



    Degree

    Resolution: 0.1

    ±0.35

    ± 60

    Range

    ± 80

    Resolution: 0.01



    ±0.2



    Degree

    Resolution: 0.1

    ±0.5

    ± 80 < range ≤ ± 90



    ±4

    ±8

    Degree

    Zero temperature drift(3

    -40---+85



    0.005

    0.01

    °/

    Other parameters

    Storage temperature



    -40



    +85

    Zero



    0.3



    Degree

    Weight

    105

    135

    148

    g

    Note 1: Resolution is the smallest variation that the sensor can detect within the measurement range. The greater the measurement angle, the lower the resolution.

    Note 2: This parameter is the angle data when the filter coefficient is 5 after 10 seconds of power up.

    Note 3: Zero temperature drift is the angular offset when the ambient temperature changes when the constant output angle is zero at room temperature.



    Electric definition

    Cable

    Silicon wire, 1.5m, 3 cores, 3 * 0.6mm2 (AWG 20), standard wire, white outer layer φ4.7mm

    Other wires are customizable



    Interface definition

    Motor angle sensor-IADS-02X40R biaxial tilt sensor (square metal case)-J1939 7

    Connector

    Can be customized according to requirements.

    Direction of measurement:

    Motor angle sensor-IADS-02X40R biaxial tilt sensor (square metal case)-J1939 8

    More information can contact us.
