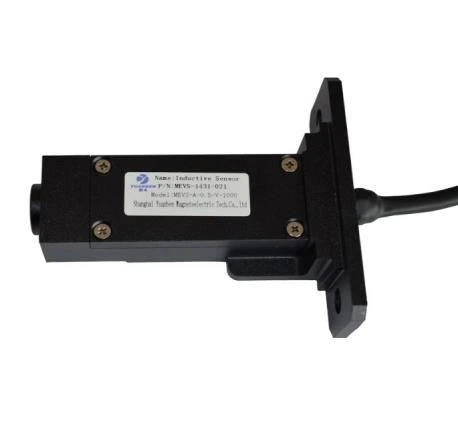

Rotary speed sensor-High-speed railway locomotive speed encoder type- MEVS-1431-020A 1
Rotary speed sensor-High-speed railway locomotive speed encoder type- MEVS-1431-020A 2
Rotary speed sensor-High-speed railway locomotive speed encoder type- MEVS-1431-020A 1
Rotary speed sensor-High-speed railway locomotive speed encoder type- MEVS-1431-020A 2

Rotary speed sensor-High-speed railway locomotive speed encoder type- MEVS-1431-020A

    oops...!

    no product data.

    Go to homepage

    I. Description

    Shanghai Yuanben Magnetoelectric Technology Co., Ltd. researches, develops and produces speed encoders for high-speed railway locomotives. All performance indicators have reached a level similar to that of international products. It can replace the Japanese speed sensors TS5840N series and TS5841N series (also known as speed encoders).

    Based on the principle of magnetic induction, the solid alloy shell is processed by CNC integrated processing. It is resistant to interference, surge, vibration and shock, with superior performance. It can withstand high and low temperature changes, is dust-proof, water-proof and oil-proof, with a protection level of IP67. It has a self-healing speed signal function and is stable and reliable in performance.

    The product can be applied to the production of CRH2 high-speed railway vehicles by CSR, CRH3 high-speed railway vehicles by CNR, and various types of heavy-duty mainline locomotives and metro vehicles by CSR and CNR.

    According to customer requirements, we can design various external structures and electrical parameters, and multiple cable connector specifications are available for selection. And provide reasonable solutions.

     Rotary speed sensor-High-speed railway locomotive speed encoder type- MEVS-1431-020A 3

    Ii. Characteristics

    Two-phase pulse output

    The input voltage is 12 V

    The minimum startup speed is 0 rpm

    Protection grade: IP67

    High and low temperatures: -40 to 125°C

    High precision: 90°±5°

    Long service life: over 120,000 hours

    Resistant to vibration and corrosion



    Iii. Application

    The application of high-speed rail vehicles, EMU vehicles, mainline locomotives, metro vehicles, light rail vehicles, monorail vehicles, electric shovels and mining equipment, etc. in large motor power equipment and medium and large-sized three-phase asynchronous motors.

    Iv. Technical Parameters

    Commodity code

    Type MEVS-1431-020A

    Product Number

    MEVS - A - 0.5 - V - 1650

    Power



    Input voltage

    Dc 12V

    At present

    Maximum 45mA

    Output





    Method

    Two-phase pulse

    Phase difference

    90±18 tolerance

    Voltage

    H=8V minimum value L=1V minimum value

    Status

    Rotational speed

    From 0 rpm

    Insulation resistance

    The minimum voltage of DC500V is 100M ohms

    Dielectric strength

    Ac 2,000V for 1 minute

    Working temperature range

    -40----125° C

    Storage temperature range

    -45----125° C

    Temperature range

    30- 100% relative humidity

    Life

    More than 120,000 hours

    Pressure resistance

    Japan Industrial Association (JIS E 4031)

    Resistance to stamping

    Japanese standard C 0912
