Optical angle sensor-Voltage output single-axis tilt sensor-IADS-010X0
Description

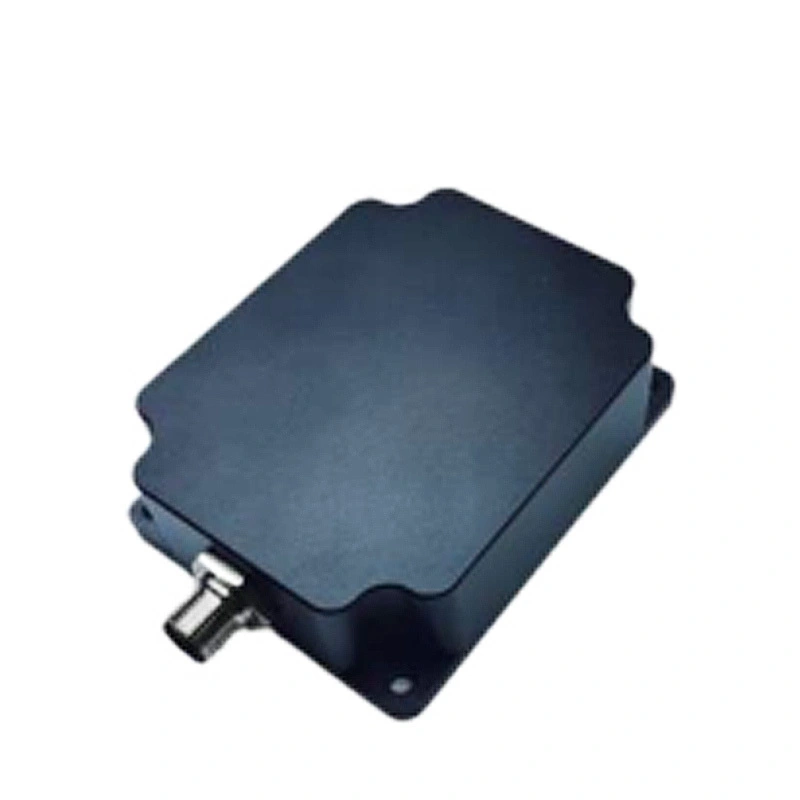

Ads-010x0 is a voltage output type single-axis tilt sensor. Output voltage: 0-5V, 0-10V is selectable. The output signal has strong anti-interference ability and is an ideal standard product for construction machinery equipment. The product adopts the latest MEMS sensing production process, with an accuracy of up to 0.02°. It is compact in size and has excellent shock and vibration resistance. It is especially suitable for application in underground trenchless machinery and other harsh industrial environments.
Characteristics
0-5V output interface (0-10V optional)
The range is selectable from 0 to ±90° or ±180°
Wide voltage input: 9-48V
Wide temperature range: -40℃ to +85℃
IP67 protection grade
High vibration resistance performance >2000g
Application
Petroleum pumping unit
Leveling of special vehicles
Safety protection for high-altitude platforms
Angle control of medical equipment
Attitude navigation of underground drilling RIGS
Application of shield pipe jacking
Direction measurement based on inclination Angle
Monitoring of geological equipment tilt
Pitch Angle measurement of directional satellite communication antennas
Technical parameters
|
|
Item |
Test conditions |
Minimum value |
Typical value |
Maximum value |
Unit |
|
|
Working parameters |
Power supply voltage |
DC |
9 |
24 |
48 |
V |
|
|
|
Static working current |
VCC=12V(no load) |
15 |
20 |
25 |
mA |
|
|
|
Working temperature |
|
-40 |
|
80 |
℃ |
|
|
Performance parameters |
Test range |
X-axis |
|
±９０，±180 |
|
Degree |
|
|
|
(1 point of discrimination |
Range ≤±90 |
|
0.02 |
|
Degree |
|
|
|
(2 Accuracy |
Range ≤±10 |
Resolution: 0.01 |
|
0.05 |
±0.1 |
Degree |
|
|
|
|
Resolution: 0.1 |
|
±0.2 |
±0.3 |
|
|
|
|
±10< range ≤±30 |
Resolution: 0.01 |
|
±0.1 |
士0.2 |
Degree |
|
|
|
|
Resolution: 0.1 |
|
0.3 |
±0.4 |
|
|
|
|
±30< range ≤±60 |
Resolution: 0.01 |
|
0.15 |
±0.3 |
Degree |
|
|
|
|
Resolution: 0.1 |
|
±0.4 |
±0.5 |
|
|
|
|
±60< range ≤±80 |
Resolution: 0.01 |
|
±0.4 |
±0.8 |
Degree |
|
|
|
|
Resolution: 0.1 |
|
±0.8 |
±1 |
|
|
|
|
±80< range ≤±90 |
|
±5 |
±10 |
Degree |
|
|
|
Repeatability |
Range ≤±10 |
Resolution: 0.01 |
|
±0.04 |
|
Degree |
|
|
|
|
Resolution：0.05 |
|
±0.1 |
|
|
|
|
|
|
Resolution：0.1 |
|
±0.2 |
|
|
|
|
|
±10< Range≤ ±30 |
Resolution：0.01 |
|
士0.06 |
|
Degree |
|
|
|
|
Resolution：0.1 |
|
±0.25 |
|
|
|
|
|
±30< Range≤ ±60 |
Resolution：0.01 |
|
±0.1 |
|
Degree |
|
|
|
|
Resolution：0.1 |
|
±0.35 |
|
|
|
|
|
±60< Range≤ ±80 |
Resolution：0.01 |
|
±0.2 |
|
Degree |
|
|
|
|
Resolution：0.1 |
|
±0.5 |
|
|
|
|
|
±80 |
|
±4 |
±8 |
Degree |
|
|
|
Zero-point temperature drift (3 |
-40---+85℃ |
|
0.005 |
0.01 |
°/℃ |
|
|
Other parameters |
Storage temperature |
|
-45 |
|
85 |
℃ |
|
|
|
Zero o 'clock |
|
|
0.3 |
|
Degree |
|
|
|
Weight |
|
105 |
135 |
148 |
g |
|
|
|
Linearity |
|
|
|
|
|
|
|
|
Impact |
Drop from 1 meter |
|
|
|
|
|
|
|
Vibration |
４０ｇ |
|
|
|
|
|
|
|
Protection grade |
IP６７ |
|
|
|
|
|
|
|
Installation surface flatness |
０.010” |
|
|
|
|
|
|
|
Surge protection (lightning protection) |
2kV |
|
|
|
|
|
|
|
Electrostatic protection |
15kV |
|
|
|
|
|
|
|
Electrical protection |
Anti-reverse polarity, anti-short circuit |
|
|
|
|
|
|
|
Electrical interface |
M12 connector |
|
|
|
|
|
|
|
External dimensions |
See the drawing (customizable) |
|
|
|
||
