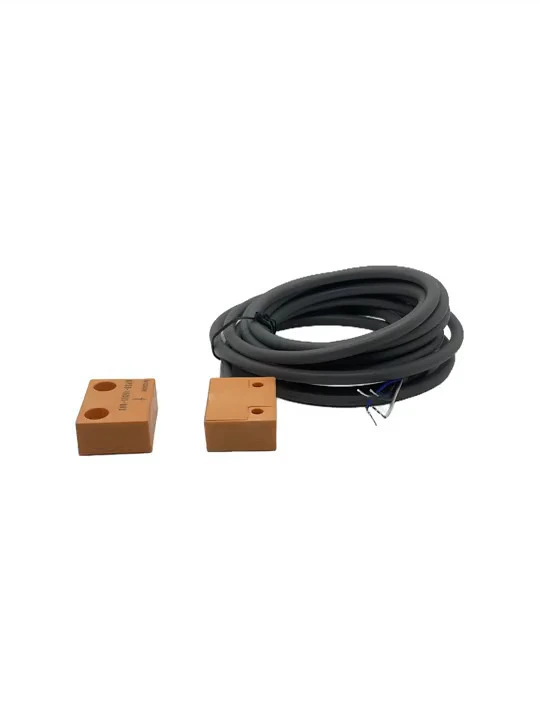

MPSS-1225-3054 MagneNon-contact Safety Interlocking Switch hinged sliding removable guard safety relays connected resistant to misalignment and extreme temperature additional level functional safety 1

MPSS-1225-3054 MagneNon-contact Safety Interlocking Switch hinged sliding removable guard safety relays connected resistant to misalignment and extreme temperature additional level functional safety

Magnetic and reed technology voltage free with high power switching capacity of 1A AC/DC

I Feature

Housing/Fix: Popular European accessories

Material: SUS304 stainless steel,suitable for contact with chemical cleaning agents.

Contact: reach to 2 N/C safety output and 1 N/O Auxiliary output.

Sensing distance：12mm working distance

Protection grade: IP67 and IP69K.

Working temperature:-25 to 105℃

Connection: Pre-wired or M128 Extremely fast.

II Application

They are suitable for hinged,sliding or removable guard applications and can be connected to most safety relays to provide a higher level of functional safety.

III Technical Parameter

Operation	Coded non-contact type
Switches mode	2 x N/O + 1 x N/C
Safety contact working distance	7mm switch on / 12mm switch off
Safety contact rating DC：	24V DC/400mA
Auxiliary contact rating DC：	24V DC/400mA
External Fuse（When not using SCU-1）	400mA
Dimensions	See drawing
IP Protection grade level	IP67 Protection grade
Cable length	Max 100 Meter
Working temperature	-25°C to +55°C
Storage temperature	-25°C to +55°C
Mounting	Target to target
Construction	Yellow PBT or 316 grade Stainless steel resin Filled
Standards EN ISO 13849-1 Safety of machinery-safety-related parts of control systems. EN ISO 62061 Safety of machinery-Functional safety related electrical,electronic and Programmable electronic control systems EN 60204 Safety of Machinery Electrical equipment for machines EN 60947-5-1 Low voltage switch gear and control gear EN 14119 Safety of machinery interlocking devices associated with guards EN 60947-5-3 Mechanical safety specifications for low voltage switch gear and control gear.
