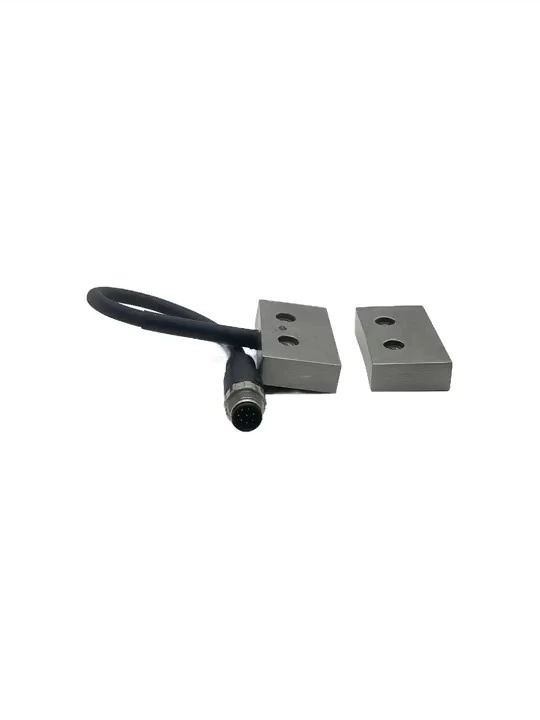

Coded magnetic safety switch-Magnetic safety switch-MPSS-3054-1024

Magnetic safety switch

Features

Non-contact magnetic safety switch

Max 3 contacts

10-24mm working distance

Up to 400mA switch current

IP67/IP69K

Stainless steel housing

CE Authentication

· Application

· Can be used for form and fill(aluminum,steel, and plastic)warranty;

Pick and place packaging equipment and semi-conductive equipment;

Turret position control,door and hatch open/close monitoring

Pick and place, assembly equipment;

plastic molding equipment and printing machinery

Factory landing gear and public transportation equipment

Woodworking machinery

Textile machinery

· Technical Parameter

Product Model	MPSS-3054-1024 model
Product coding	MPSS-	MPSS-
Product	Safety magnetism,Non-contact switch	Safety magnetism, Non-contact switch
Actuator	Coded magnetic actuator	coded magnetic actuator
Switch mode	2 N.O. safety and 1 N.C.Auxiliary	2 N.C. safety and 1 N.O.Auxiliary
Working distance range	10-24mm	10-24mm
Voltage	30Vdc/400mA resistance	30Vdc/400mA Resistance
Shell material	Stainless steel SS316L	Stainless steel SS316L
Shell type	Switch and actuator	Switch and actuator
Shock	10g	10g
Vibration	10-55 Hz	10-55 Hz
Seal	IP67 Protection grade	IP67 Protection grade
Working temp. range	0 to 70°C	0 to 70°C
Cable length	150 mm Pre-wired，with M12 8 pins	150 mm Prewired，with M12 8pins
Approval	CE

Electrical Definition

Cable

Lighting Emitting Diode	Status	Description
LED indicator on the sensor	Green-Red(Flash)	Actuator proximity to sensor in detection area, safety switch off.
	Green-Red(Flash）	Safety switch on, sensor has trouble shooting
	Red	Actuator keeps away from sensor area,safety switch on
